Rent Fowler Center

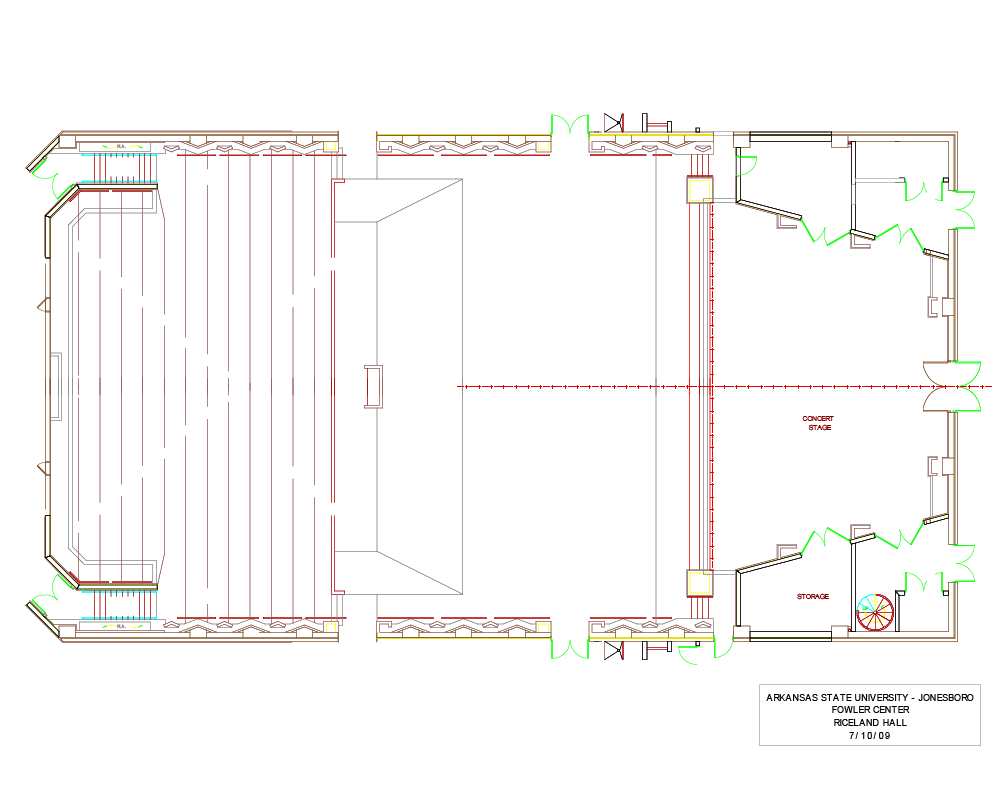

Theatre Type:

• Concert Hall

Audience Seating:

• 972 Seats
• Continental

Stage Dimensions:

• Stage Width at Front of Stage 59'6"
• Stage Width at Back of Stage 40'
• Stage Depth 40'
• Proscenium Height 25'3"

Stage Floor:

• Level
• Blonde hardwood veneer on concrete
• No Trap Doors
• No screwing or nailing into floor allowed

Acoustical Curtains:

• There are curtains that can be opened or closed along the walls that can be used to control the acoustical properties of the concert hall

Dance Floor:

• 3’ square interlocking panels
• 100 panels

Wings:

• None
• Crossover space behind stage

Flies:

• None

Draperies:

• None

Loading Dock:

• Semi-truck height
• Dock plate available
• Lift available
• 120V, 20 amp circuit available
• Loading Dock Door 10’ Wide X 8’ Tall
• Loading Dock at Stage Height
• Located east side of Building, directly behind stage

Dressing Rooms:

• 2 Equity Dressing Rooms Stage Left (toilet, sink, mirror, shower in each, wardrobe rack)
• Large classroom can be made available (can be divided in two with a partition)
• Additional restrooms located down hall

Pianos:

• Baldwin (9 foot)
• Steinway (9 foot Concert Grand)

Lighting and Electrics:

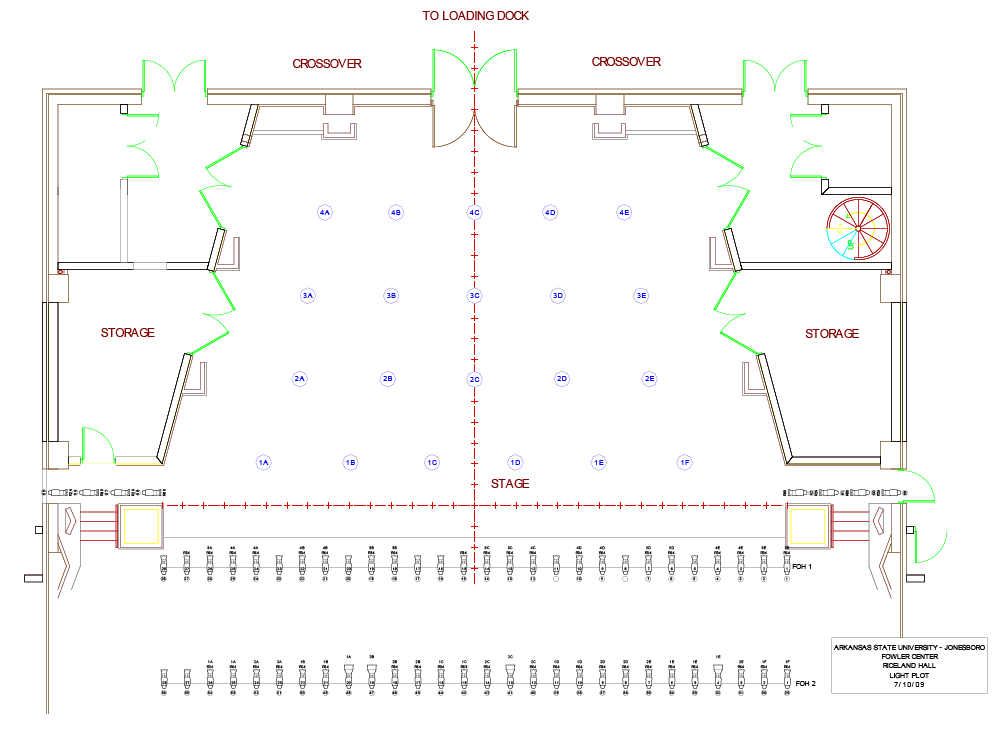

Lighting Positions with Circuit Assignments:

• FOH #1 1-28
• FOH #2 29-54
• Stage Right High Sides 55-58
• Stage Left High Sides 59-62
• Stage Right White Top Light 78-80
• Center Stage White Top Light 81-86
• Stage Left White Top Light 87-89



House Lights with Circuit Assignments:

• Front House Lights 63-64
• Rear House Lights 65-66
• Lower Aisle Lights 69
• Down House Left Ceiling Aisle Lights 70
• Down House Right Ceiling Aisle Lights 71
• Up House Left Ceiling Aisle Lights 72
• Up House Left Ceiling Aisle Lights 73
• Lower House Left Wall Sconce 74
• Lower House Right Wall Sconce 75
• Upper House Left Wall Sconce 76
• Upper House Right Wall Sconce 77
• Back Wall Ceiling Aisle Lights 90, 93
• Back Wall Sconces 91
• Entry Way 92
• Cross over Aisle 94
• Upper Step Lights 95-96



Instruments:

• 56 ETC Source Four 19 Degrees (pink and Blue front wash)
• 8 ETC Source Four 10 Degrees (Specials)
• 10 ETC Source Four Zooms (Sidelight)
• 34 White wash lights (overhead, dimmable, but cannot color or focus, white wash)
• No Followspots



ETC Express Light Board

96 Dimmers 2.4K

Dimmer Per Circuit

Stage Pin Connectors

Company Switch USL

• 120-208V, 400Amp, 4 wire + ground, 3 phase, cam lock and loose end connections

House Sound:

Mixer:

• Allen & Heath GLD 80
  • 20 fader Digital mixer
  • 8 inputs and 8 outputs
  • Wireless iPad remote



Playback:

• Marantz CD Player PMD 320
• Panasonic DVD/CD Player DVD-RV32



Microphones

• 6 Shure SM58
• 6 Shure Beta 57
• 4 Shure KSM 100
• 4 Shure Wireless SM58
• 4 AKG Wireless



Speakers:

• 8 x JBL VRX932LAP 12” 2-way line array
• 4 x JBL PRX618S-XLF 18” subwoofer



Direct Box:

• 3 Whirlwind Directors

Amplifiers:

• DBX Driverack loudspeaker management processor
• 2 Crown Macrotech 602 Amplifiers (monitors)
• QSC RMX 1850HD Amplifier (Monitors)

Monitors:

• 4 Klipsh KSM 12 speakers
• 2 JBL JRX PRX412M 12” 2-way stage monitor

Communication:

• Clear-Com Four-Channel Wireless Base Station WBS-680 located in booth
• 4 Clear-Com WTR-670 UHF Beltpack transceivers

Video Projection:

• Projection Screen Permanently Rigged to USC Wall 19’6”W x 18’ T
• HP Projector XP8020 Permanently Hung in FOH #1
  • VGA Cable Ran to Booth for Computer Hookup
  • Panasonic DVD/CD Player DVD-RV32
• Panasonic Projector PT-LB60U

Video Monitoring System:

• None

Audio Monitoring System:

• None

Room Type:

• Banquet Hall

Room Dimension:

• Approximately 45'x90' Ellipse

Floor:

• Commercial Berber Carpet

Sound:

• Mackie 1202 BLZ Pro
• 8 Channel
• 2 Wireless Handheld Microphones Shure SM58
• 2 Wireless Lavalier Microphones Shure 93
• Handheld and Lavalier Mics share frequency
• Marantz CD Player PMD 320
• 4 Klipsch Speakers in corner

Lighting:

• Leprecon 612
  • 2 Scene
  • 12 Channel
  • Dimmer/Circuit
  • Light Positions in corner (3 circuits/corner)

Projection Screen:

• Screen Hung from Wall on South Side of Room 12'W x 9"T
• Panasonic Projector PT-LB60U

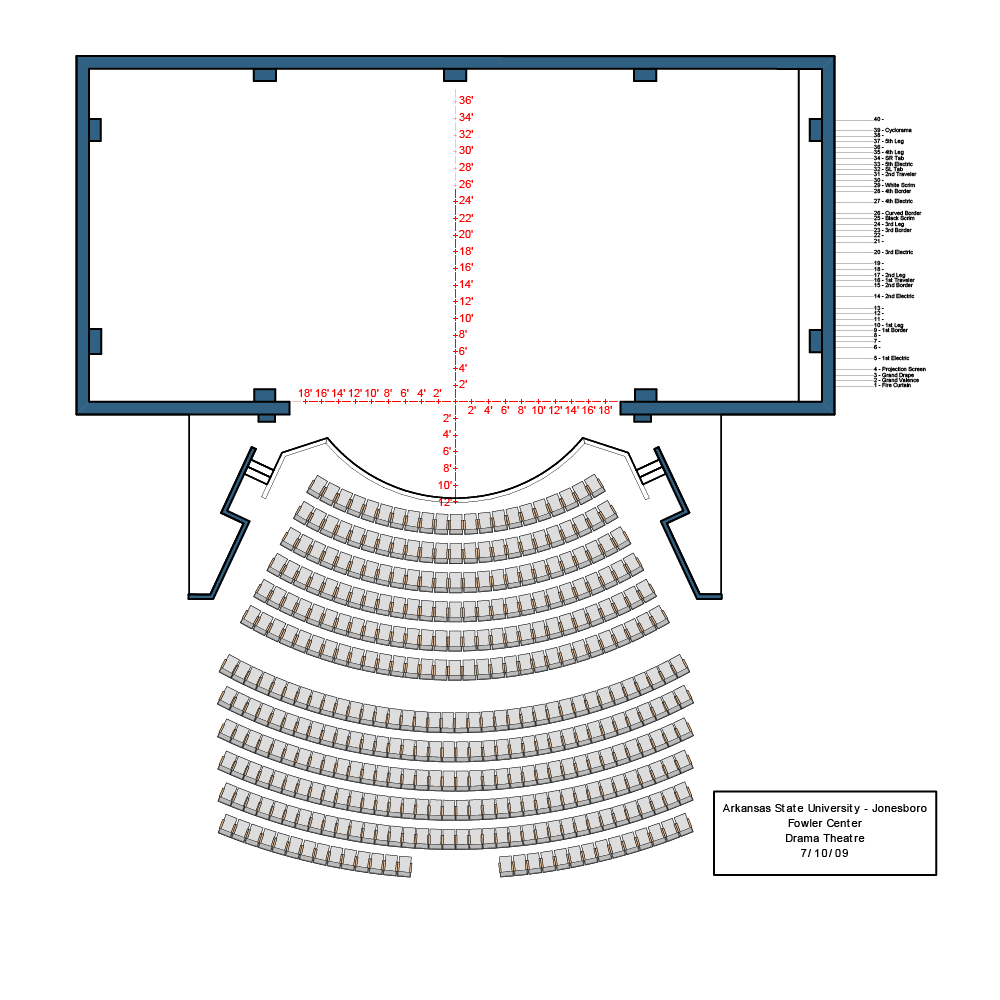

Theatre Type:

• Proscenium

Audience Seating:

• 342 Seats
• Continental

Stage Dimensions:

• Proscenium Width 39’8”
• Proscenium Height 20’
• Back Wall to Plaster Line 38’5”
• Plaster Line to Front of Apron (Curved) 12’
• Plaster Line to Cyc 44’
• Crossover space (Cyc to back wall) 5’ 10”
• Maximum Viewing Distance from Center Stage to Last Row 71’

Stage Floor:

• Level
• Tempered Hardboard
• Painted Black
• No Trap Doors

Wings:

• Stage Right (Tab to wall) 11’
• Stage Left (Tab to wall) 7’
• Crossover space (Cyc to back wall) 5’ 10”

Flies:

• 40 Line sets with 5 Motorized Line sets for Electrics
• Located SL
• Batons are 58’6”
• 1.5” o.d. pipe

Draperies:

• Red Grand Drape with Valance
• 5 sets of Black Legs
• 4 Black Borders
• 2 Tabs (SL and SR)
• Black Scrim
• White Scrim
• White Cyclorama
• Projection Screen

Loading Dock:

• 24” above Parking Lot
• Loading Dock Door 12’ Wide X 10’ Tall
• Loading Dock at Stage Height
• Located SW side of Building

Dressing Rooms:

• 2 Equity Dressing Rooms Stage Right (toilet, sink, mirror, shower)
• 1 Men’s Dressing Room Stage Right (toilet, urinal, 2 sinks, 2 showers)
• 1 Women’s Dressing Room Stage Right (2 toilets, 2 sinks, 2 showers)
• 1 Makeup Room Stage Right (20 Mirrors and makeup stations, 3 sinks)
• Green Room (Full length mirror, sink)

Lighting and Electrics:

Lighting Positions with Circuit Assignments:

• #1 Beam 1-30
• #2 Beam 31-60
• DL Alcove 61-68
• DR Alcove 69-76
• UL Alcove 77-80
• UR Alcove 81-84
• 1^st Electric 85-114
• 2^nd Electric 115-134
• 3^rd Electric 135-154
• 4^th Electric 155-174
• 5^th Electric 175- 204
• SL Catwalk 205-210
• Up Center Catwalk 211-216
• SR Catwalk 217-222
• Lower Proscenium Wall SL 223-226
• Lower Proscenium Wall SR 227-230
• Upper Proscenium Wall SL 231-234
• Upper Proscenium Wall SR 235-238
• US Wall 239-254
• Orchestra Pit 255-262
• SL Floor Pocket 263-266
• SR Floor Pocket 267-270
• Work Lights 271-273



House Lights with Circuit Assignments:

• Front House Lights 274
• Middle House Lights 275
• Rear House Lights 276
• Wall Sconces 277
• House Right Aisle Lights 278
• House Left Aisle Lights 279
• Aisle Lights 281
• Entry Lights 284
• Proscenium Rope Light 286



ETC Expression 3

288 Dimmers 2.4K

Dimmer Per Circuit

Stage Pin Connectors

No Company Switch

House Sound:

Mono System

Mixer:

• Spirit 8
  • 32 Inputs, 2 Stereo Inputs
  • 8 Group Busses
  • 6 Aux Outs (2 Pre, 2Pre/Post, 2 Post)
  • 4 Mute Groups



Playback:

• Denon Stereo Cassette Tape Deck DN-720R
• Denon CD Recorder CDR-W1500
• Sony Mini Deck MDS-JE520
• 360 Systems ShortCut
• 360 Systems Instant Replay



Microphones:

• 2 AudioTechnica AT853a Cardioid Microphones (1^st Beam, monitoring)



Speakers:

• Electro-Voice FRI-122/64 Speakers
• Electro-Voice FRI-152/64 Speakers



Direct Box:

• Behringer Ultra-DI DI20



Amplifiers:

• 1 QSC-CX302V Amplifier
• 3 QSC-CX702 Amplifier
• 2 QSC-CX404 Amplifier



Monitors:

• 2 EVs1202ER
• 2 Community MVP 38 Wedge



Sequencer:

• Lyntec PDS-8 Power Sequencing



Misc:

• Behringer Virtualizer Pro DSP2024 Effects Processor
• QSC-DSP-3 Digital Signal Processor
• QSC-BSC-3 Buscard
• QSC-XF-1 Isolation Transformer
• ADC Patch Panels

Communication:

• Clear-Com Two-Channel Main Station located SL
• Clear-Com Two-Channel Speaker Stations in Green Room, Men’s and Women’s Dressing Rooms and Make-up Room
• Headsets located SR, Light Booth, Sound Booth, SM Booth, Fly Rail, Beams

Video Monitoring System:

• 1 Fixed Position Infrared Camera
• Video Monitors SL, SR, SM Booth, Greenroom

Audio Monitoring System:

• 2 microphones hung from 1^st Beam through mixer into Booths, Greenroom, Dressing Rooms and Makeup Room
